Straight Radial Blade Materials Handling Fans

Medium Flow Rates, Medium to high Pressures, Abrasive Dust Loads

RM Series

 RM series high flow rate standard designs for 5 kPa
 RMH high flow rate standard designs for 10 kPa
 RMB high flow rate with backplate for handling stringy material
 RMR high flow rate rimmed impeller for sawdust
 RMA (Clean Air version of RM Fans)

The RM Fan Series is intended for applications where a heavy abrasive or sticky dust load must pass through the fan. The RM & RMH fans have six bladed open impellers with stiffening webs between the blades. The fans are used for conveying abrasive dusts, granular material & exhausting from wet dust collectors. The standard fan is capable of pressures up to 6kPa. Peak static efficiency is 63% for the larger sizes, reducing to 58% for the smallest size. The standard fan has a spigot inlet & discharge. Flanged connections are available as an option.

The RM fan Series is heavily built to withstand the effect of abrasive wear more readily than most commercially available materials handling fan.



MH Series

 MH87 medium flow rate

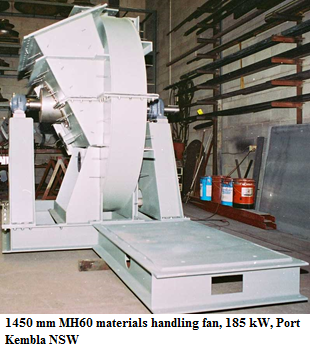

 MH60 low flow rate
 MH60/50 low flow rate
 MH60/15 very low flow rate

The MH Series have straight radial blades & are used on applications where dust or material has to pass through the fan. Straight radial blade  materials handling fans are the most resistant to material build-up of any centrifugal fan type. All of the MH series fans are lower flow rate designs compared to the general purpose RM & RMH materials handling fans.
